Tile Adhesive Mixing Machine , Floor Grout Formulated Dry Mortar Equipment

Brand Name : BH

Model Number : BH 2-5 T/H

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 85 sets per month

Delivery Time : 2-5 work days

Packaging Details : 1X20GP container for 1 set 1-5 t/h dry mortar plant.

Product name : Tile Adhesive Machine

Mixer : twin shaft paddle mixer

mixing tiem : 2-3 minutes

Height : 4m

Capacity : 2-5 t/h

Function : full automatic

Warranty : 1 year

Voltage : 220V/380V/415V

Total power : 5-15kw

After-sales service provided : Service Provided: Engineers Available To Service Machinery Overseas

mixer volume : 3300*1050*2100(mm)

Contact Now

Floor grout formulated dry mix mortar plant tile adhesive machine

Description:

BH simple dry mortar plant can be fitted with two types of mixers, horizontal ribbon mixer and twin shaft paddle mixer according to customer's requested capacity and actual workshop height condition.

Parameter of 2-5t/h simple dry mortar plant:

model	simple dry mortar plant
capacity	2-5t/h
occupied area	20m2
hight	4m
total power	5-15kw
batch and packaging	annual batching and automatic packaging
mixer type	twin sahft paddle mixer

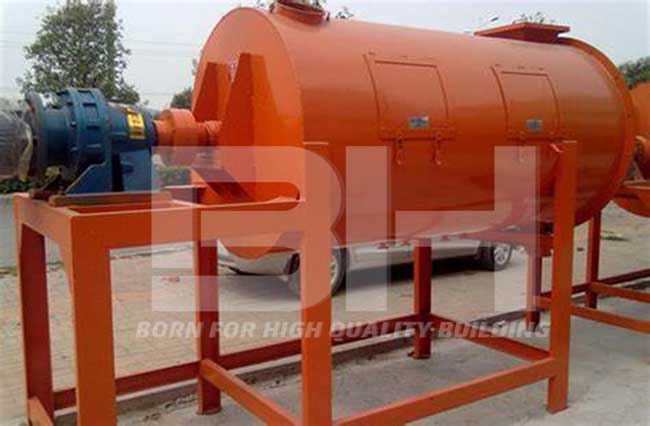

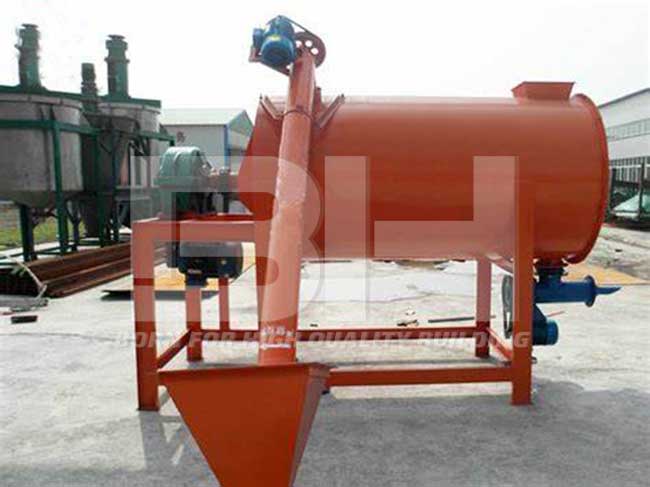

BH Horizontal Ribbon Mixer Working principle:
The outer and inner screw ribbon blade driven by high speed rotating shaft,mixing the material in maximum,inner screw ribbon blade forced the material to sides,outer screw ribbon blade forced sides material to inward,mix the materials back and forth.In the same time,some material driven by screw ribbon do the radial motion,to form the convective mixing,so to achieve uniform mixing effect in relatively short time.

BH Twin Shaft Paddle Mixer Working principle:

The high efficiency twin shaft mixer adopts the paddle structure,The materials can lose weight instantly at the critical parabolic rotate speed so that can achieve best mixing effect,while the violent turnover speed shortens the mixing time in large extent,Thus the mixer is widely applied in medium and large dry mortar production lines

Mixer Features:

Horizontal Ribbon Mixer

1. Occupy area<20m2,height 3.5m,required 2-3 operation.
2. The capacity at 25-30 Ton per day.
3. It can realize automation in conveying material,mixing,filling and packing.
4. With Less cost.It's the priority option for setting up a small dry mortar factory.

Twin Shaft Paddle Mixer

1. High mixing homogeneity at 99.9%

2. High efficiency at 90~120 seconds per

batch

3. No dead corner for mixing. No residual

for discharging

4. Durable lifetime and stable

performance.

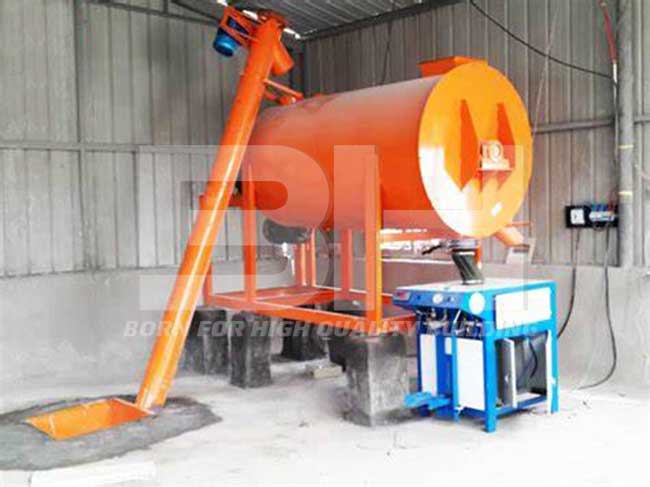

Installation site:

Tile Adhesive Mixing Machine , Floor Grout Formulated Dry Mortar Equipment
