Rational construction strong and sturdy BH cement storage tank
Description:
The cement silo is generally used in the bulk cement storage of the concrete mixing station. The bulk cement silo is a closed tank for storing bulk materials. It is suitable for storing various bulk materials such as grain, cement, fly ash, etc. The system can display the position and the amount of the material, and the hole device can relieve the solidification caused by the material deposition for too long. The cement silo and the screw conveyor can be used to transport the materials to various locations. The tank is easy to install, safe and reliable, and is an ideal bulk storage tank for various mixing stations. It is suitable for storing grain, cement, fly ash, dry sand, chemical powder, thickening powder, admixture, etc. It is usually applied to mixing concrete in express station, dry mortar factory, expressway, railway, tunnel, bridge, dock, etc. .
Parameter:
| Model | Tanker Diameter | Tanker Height | Outlet height from the ground (m) | Capacity | Two sets silo transportation |
| BS50 | 3m | 7.6m | 1.5 | 50T | 1*40'HQ |
| BS60 | 3m | 7.6m | 1.5 | 60T | 1*40'HQ |
| BS80 | 3m | 11m | 1.5 | 80T | 1*40'HQ |
| BS100 | 3m | 12.5m | 1.5 | 100T | 1*40'HQ |
| BS200 | 4.5m | 19m | 1.5 | 200T | 1*40'HQ+1*20'GP |
| BS300 | 5.5m | 21.3m | 1.5 | 300T | 2*40'HQ |
| BS500 | 6m | 23.2m | 1.5 | 500T | In Bulk |
Composition:
The cement tank is mainly composed of cement tank legs, valves, screw conveyors, cement arching devices, tank bodies, stairs, material level gauges, and warehouse top dust collectors.
The tank is equipped with a positioning system that can display the position and weight of the material. The detachable bottom unit of the cement tank can eliminate condensation and blockage caused by material deposition; it can also quickly remove objects accidentally falling into the tank. With a screw conveyor, the material can be transported to various locations.
1. Cement silo (tank) is suitable for storage silos of bulk cement in engineering construction, commercial concrete mixing plant, road and bridge water conservancy project, urban construction and other projects. It is waterproof, moisture-proof, prevents cement loss, reduces urban air dust pollution, has small floor space, long service life and low cost. It is a building environmental protection machinery accessory product currently promoted and used in the country.
2. The cement silo (tank) is usually used as an accessory product for the concrete mixing station (floor).
3. Cement silo (tank) is suitable for loading bulk cement and dry fly ash. It has the characteristics of rainproof, moisture proof and convenient use. It is generally 50t, 100t, 200t, 300t, 400t, 500t and other specifications. It can also be made according to the size requested by the user.
4. The cement silo (tank) is generally a cylindrical bracket structure. The upper part has dust removal equipment to prevent dust leakage. The lower part is equipped with a broken arch device to prevent dust from agglomerating and smooth out the powder.
5. The cement silo (tank) generally uses a bulk cement truck to blow the powder into the silo.
BH Cement Silo Details Features:

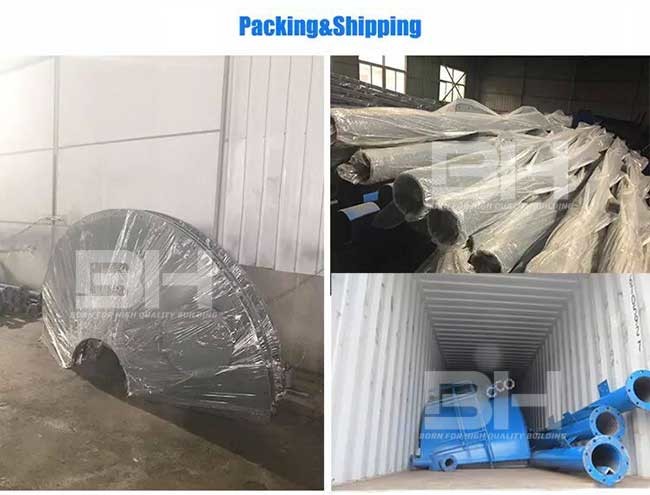

Delivery & Packing:

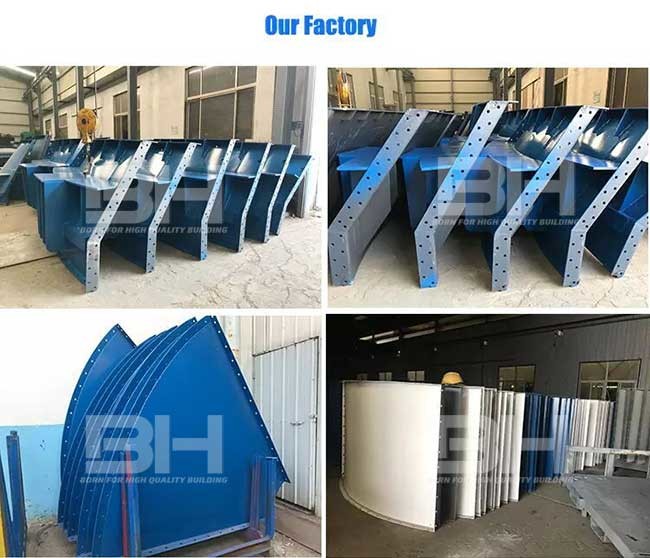

Our Factory:
Product Tags:
|
|
Strong And Sturdy Vertical Cement Silo , Demountable Cement Storage Tank Images
|
